// 对象接口必须被在 Scheme 注册的所有 API 类型支持。由于方案中的对象是
// 预期被序列化到线路，对象必须提供给 Scheme 的接口允许
// 用于设置对象表示的种类、版本和组的序列化程序。对象可以选择
// 在不希望序列化的情况下返回无操作 ObjectKindAccessor。
type Object interface {
	GetObjectKind() schema.ObjectKind
	DeepCopyObject() Object
}

type ObjectKind interface {
	// SetGroupVersionKind sets or clears the intended serialized kind of an object. Passing kind nil
	// should clear the current setting.
	SetGroupVersionKind(kind GroupVersionKind)
	// GroupVersionKind returns the stored group, version, and kind of an object, or an empty struct
	// if the object does not expose or provide these fields.
	GroupVersionKind() GroupVersionKind
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

package main

import (
	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
	"k8s.io/apimachinery/pkg/runtime"
	"k8s.io/kubernetes/pkg/apis/core"
	"reflect"
)

func main() {
	pod := &core.Pod{
		TypeMeta: metav1.TypeMeta{
			Kind: "Pod",
		},
		ObjectMeta: metav1.ObjectMeta{
			Labels: map[string]string{"name": "foo"},
		},
	}

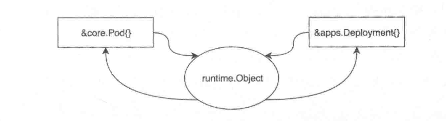

	obj := runtime.Object(pod)

	pod2, ok := obj.(*core.Pod)
	if !ok {
		panic("unexpected")
	}
	if !reflect.DeepEqual(pod, pod2) {
		panic("unexpected")
	}
}

1
2
3
4

{
  "id": 1
  "name": "Derek"
}

1
2
3
4

type Student struct{
  ID int
  Name string
}

1
2
3
4
5

{
	"id": 1,
	"name": "Derek",
  "description": ...
}

1

var result map[string]interface{}

1
2
3

if description, ok := result["description"].(string);ok{
  fmt.Println(description)
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

// staging/src/k8s.io/apimachinery/pkg/runtime/interfaces.go

// Unstructured objects store values as map[string]interface{}, with only values that can be serialized
// to JSON allowed.
type Unstructured interface {
	Object
	// NewEmptyInstance returns a new instance of the concrete type containing only kind/apiVersion and no other data.
	// This should be called instead of reflect.New() for unstructured types because the go type alone does not preserve kind/apiVersion info.
	NewEmptyInstance() Unstructured
	// UnstructuredContent returns a non-nil map with this object's contents. Values may be
	// []interface{}, map[string]interface{}, or any primitive type. Contents are typically serialized to
	// and from JSON. SetUnstructuredContent should be used to mutate the contents.
	UnstructuredContent() map[string]interface{}
	// SetUnstructuredContent updates the object content to match the provided map.
	SetUnstructuredContent(map[string]interface{})
	// IsList returns true if this type is a list or matches the list convention - has an array called "items".
	IsList() bool
	// EachListItem should pass a single item out of the list as an Object to the provided function. Any
	// error should terminate the iteration. If IsList() returns false, this method should return an error
	// instead of calling the provided function.
	EachListItem(func(Object) error) error
}

// staging/src/k8s.io/apimachinery/pkg/apis/meta/v1/unstructured/unstructured.go
type Unstructured struct {
	// Object is a JSON compatible map with string, float, int, bool, []interface{}, or
	// map[string]interface{}
	// children.
	Object map[string]interface{}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

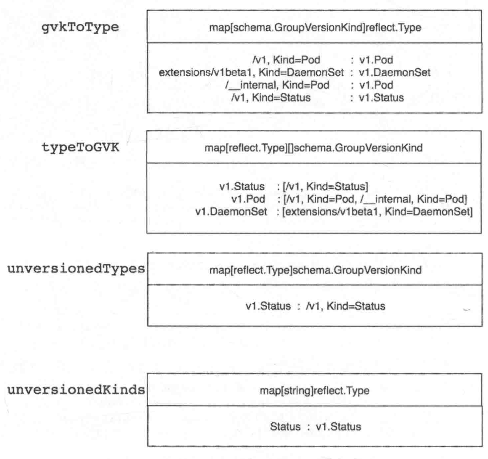

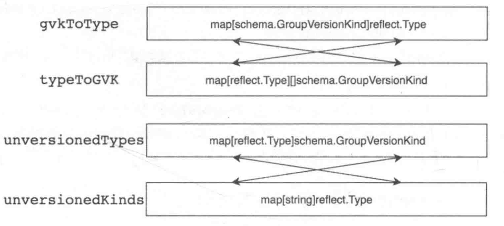

eme struct {
	// gvkToType allows one to figure out the go type of an object with
	// the given version and name.
	gvkToType map[schema.GroupVersionKind]reflect.Type

	// typeToGVK allows one to find metadata for a given go object.
	// The reflect.Type we index by should *not* be a pointer.
	typeToGVK map[reflect.Type][]schema.GroupVersionKind

	// unversionedTypes are transformed without conversion in ConvertToVersion.
	unversionedTypes map[reflect.Type]schema.GroupVersionKind

	// unversionedKinds are the names of kinds that can be created in the context of any group
	// or version
	// TODO: resolve the status of unversioned types.
	unversionedKinds map[string]reflect.Type

  ...
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

package main

import (
	appsv1 "k8s.io/api/apps/v1"
	corev1 "k8s.io/api/core/v1"
	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
	"k8s.io/apimachinery/pkg/runtime"
	"k8s.io/apimachinery/pkg/runtime/schema"
)

func main() {
	// KnownType external
	coreGV := schema.GroupVersion{Group: "", Version: "v1"}
	extensionsGV := schema.GroupVersion{Group: "extensions", Version: "v1beta1"}

	// KnownType internal
	coreInternalGV := schema.GroupVersion{Group: "", Version: runtime.APIVersionInternal}

	// UnversionedType
	Unversioned := schema.GroupVersion{Group: "", Version: "v1"}

	scheme := runtime.NewScheme()
	scheme.AddKnownTypes(coreGV, &corev1.Pod{})
	scheme.AddKnownTypes(extensionsGV, &appsv1.DaemonSet{})
	scheme.AddKnownTypes(coreInternalGV, &corev1.Pod{})
	scheme.AddUnversionedTypes(Unversioned, &metav1.Status{})
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

/*
AddUnversionedTypes 将提供的类型注册为“未版本化”，这意味着它们遵循特殊规则。
每当序列化此类型的对象时，它都会使用提供的组版本进行序列化，而不是
转换。因此，未版本化的对象应该永远保持向后兼容，就好像它们在一个永远不会更新的 API 组和版本。
 */

func (s *Scheme) AddUnversionedTypes(version schema.GroupVersion, types ...Object) {
	s.addObservedVersion(version)
	s.AddKnownTypes(version, types...)
	for _, obj := range types {
		t := reflect.TypeOf(obj).Elem()
		gvk := version.WithKind(t.Name())
		s.unversionedTypes[t] = gvk
		if old, ok := s.unversionedKinds[gvk.Kind]; ok && t != old {
			panic(fmt.Sprintf("%v.%v has already been registered as unversioned kind %q - kind name must be unique in scheme %q", old.PkgPath(), old.Name(), gvk, s.schemeName))
		}
		s.unversionedKinds[gvk.Kind] = t
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

/*
 AddKnownTypes 将“types”中传递的所有类型注册为版本“version”的成员。
 传递给类型的所有对象都应该是指向结构的指针。去报道的名字
 该结构在编码时成为“种类”字段。版本不能为空 - 使用
 APIVersionInternal 常数，如果你有一个没有正式版本的类型
*/

func (s *Scheme) AddKnownTypes(gv schema.GroupVersion, types ...Object) {
	s.addObservedVersion(gv)
	for _, obj := range types {
		t := reflect.TypeOf(obj)
		if t.Kind() != reflect.Pointer {
			panic("All types must be pointers to structs.")
		}
		t = t.Elem()
		s.AddKnownTypeWithName(gv.WithKind(t.Name()), obj)
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

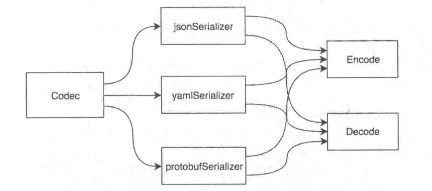

type Decoder interface {
	Decode(data []byte, defaults *schema.GroupVersionKind, into Object) (Object, *schema.GroupVersionKind, error)
}

type Encoder interface {
	Encode(obj Object, w io.Writer) error
	Identifier() Identifier
}

type Serializer interface {
	Encoder
	Decoder
}

// Codec is a Serializer that deals with the details of versioning objects. It offers the same
// interface as Serializer, so this is a marker to consumers that care about the version of the objects
// they receive.
type Codec Serializer

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70

func newSerializersForScheme(scheme *runtime.Scheme, mf json.MetaFactory, options CodecFactoryOptions) []serializerType {
	jsonSerializer := json.NewSerializerWithOptions(
		mf, scheme, scheme,
		json.SerializerOptions{Yaml: false, Pretty: false, Strict: options.Strict},
	)
	jsonSerializerType := serializerType{
		AcceptContentTypes: []string{runtime.ContentTypeJSON},
		ContentType:        runtime.ContentTypeJSON,
		FileExtensions:     []string{"json"},
		EncodesAsText:      true,
		Serializer:         jsonSerializer,

		Framer:           json.Framer,
		StreamSerializer: jsonSerializer,
	}
	if options.Pretty {
		jsonSerializerType.PrettySerializer = json.NewSerializerWithOptions(
			mf, scheme, scheme,
			json.SerializerOptions{Yaml: false, Pretty: true, Strict: options.Strict},
		)
	}

	strictJSONSerializer := json.NewSerializerWithOptions(
		mf, scheme, scheme,
		json.SerializerOptions{Yaml: false, Pretty: false, Strict: true},
	)
	jsonSerializerType.StrictSerializer = strictJSONSerializer

	yamlSerializer := json.NewSerializerWithOptions(
		mf, scheme, scheme,
		json.SerializerOptions{Yaml: true, Pretty: false, Strict: options.Strict},
	)
	strictYAMLSerializer := json.NewSerializerWithOptions(
		mf, scheme, scheme,
		json.SerializerOptions{Yaml: true, Pretty: false, Strict: true},
	)
	protoSerializer := protobuf.NewSerializer(scheme, scheme)
	protoRawSerializer := protobuf.NewRawSerializer(scheme, scheme)

	serializers := []serializerType{
		jsonSerializerType,
		{
			AcceptContentTypes: []string{runtime.ContentTypeYAML},
			ContentType:        runtime.ContentTypeYAML,
			FileExtensions:     []string{"yaml"},
			EncodesAsText:      true,
			Serializer:         yamlSerializer,
			StrictSerializer:   strictYAMLSerializer,
		},
		{
			AcceptContentTypes: []string{runtime.ContentTypeProtobuf},
			ContentType:        runtime.ContentTypeProtobuf,
			FileExtensions:     []string{"pb"},
			Serializer:         protoSerializer,
			// note, strict decoding is unsupported for protobuf,
			// fall back to regular serializing
			StrictSerializer: protoSerializer,

			Framer:           protobuf.LengthDelimitedFramer,
			StreamSerializer: protoRawSerializer,
		},
	}

	for _, fn := range serializerExtensions {
		if serializer, ok := fn(scheme); ok {
			serializers = append(serializers, serializer)
		}
	}
	return serializers
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81

// staging/src/k8s.io/apimachinery/pkg/runtime/serializer/json/json.go

func (s *Serializer) Decode(originalData []byte, gvk *schema.GroupVersionKind, into runtime.Object) (runtime.Object, *schema.GroupVersionKind, error) {
	data := originalData
	if s.options.Yaml {
		altered, err := yaml.YAMLToJSON(data)
		if err != nil {
			return nil, nil, err
		}
		data = altered
	}

	actual, err := s.meta.Interpret(data)
	if err != nil {
		return nil, nil, err
	}

	if gvk != nil {
		*actual = gvkWithDefaults(*actual, *gvk)
	}

	if unk, ok := into.(*runtime.Unknown); ok && unk != nil {
		unk.Raw = originalData
		unk.ContentType = runtime.ContentTypeJSON
		unk.GetObjectKind().SetGroupVersionKind(*actual)
		return unk, actual, nil
	}

	if into != nil {
		_, isUnstructured := into.(runtime.Unstructured)
		types, _, err := s.typer.ObjectKinds(into)
		switch {
		case runtime.IsNotRegisteredError(err), isUnstructured:
			strictErrs, err := s.unmarshal(into, data, originalData)
			if err != nil {
				return nil, actual, err
			}

			// when decoding directly into a provided unstructured object,
			// extract the actual gvk decoded from the provided data,
			// and ensure it is non-empty.
			if isUnstructured {
				*actual = into.GetObjectKind().GroupVersionKind()
				if len(actual.Kind) == 0 {
					return nil, actual, runtime.NewMissingKindErr(string(originalData))
				}
				// TODO(109023): require apiVersion here as well once unstructuredJSONScheme#Decode does
			}

			if len(strictErrs) > 0 {
				return into, actual, runtime.NewStrictDecodingError(strictErrs)
			}
			return into, actual, nil
		case err != nil:
			return nil, actual, err
		default:
			*actual = gvkWithDefaults(*actual, types[0])
		}
	}

	if len(actual.Kind) == 0 {
		return nil, actual, runtime.NewMissingKindErr(string(originalData))
	}
	if len(actual.Version) == 0 {
		return nil, actual, runtime.NewMissingVersionErr(string(originalData))
	}

	// use the target if necessary
	obj, err := runtime.UseOrCreateObject(s.typer, s.creater, *actual, into)
	if err != nil {
		return nil, actual, err
	}

	strictErrs, err := s.unmarshal(obj, data, originalData)
	if err != nil {
		return nil, actual, err
	} else if len(strictErrs) > 0 {
		return obj, actual, runtime.NewStrictDecodingError(strictErrs)
	}
	return obj, actual, nil
}

1
2
3
4
5
6
7
8

package lm;

message helloworld
{
required int32 id = 1;
required string str = 2;
optional int32 opt = 3;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73

func (s *Serializer) doEncode(obj runtime.Object, w io.Writer, memAlloc runtime.MemoryAllocator) error {
	if memAlloc == nil {
		klog.Error("a mandatory memory allocator wasn't provided, this might have a negative impact on performance, check invocations of EncodeWithAllocator method, falling back on runtime.SimpleAllocator")
		memAlloc = &runtime.SimpleAllocator{}
	}
	prefixSize := uint64(len(s.prefix))

	var unk runtime.Unknown
	switch t := obj.(type) {
	case *runtime.Unknown:
		estimatedSize := prefixSize + uint64(t.Size())
		data := memAlloc.Allocate(estimatedSize)
		i, err := t.MarshalTo(data[prefixSize:])
		if err != nil {
			return err
		}
		copy(data, s.prefix)
		_, err = w.Write(data[:prefixSize+uint64(i)])
		return err
	default:
		kind := obj.GetObjectKind().GroupVersionKind()
		unk = runtime.Unknown{
			TypeMeta: runtime.TypeMeta{
				Kind:       kind.Kind,
				APIVersion: kind.GroupVersion().String(),
			},
		}
	}

	switch t := obj.(type) {
	case bufferedMarshaller:
		// this path performs a single allocation during write only when the Allocator wasn't provided
		// it also requires the caller to implement the more efficient Size and MarshalToSizedBuffer methods
		encodedSize := uint64(t.Size())
		estimatedSize := prefixSize + estimateUnknownSize(&unk, encodedSize)
		data := memAlloc.Allocate(estimatedSize)

		i, err := unk.NestedMarshalTo(data[prefixSize:], t, encodedSize)
		if err != nil {
			return err
		}

		copy(data, s.prefix)

		_, err = w.Write(data[:prefixSize+uint64(i)])
		return err

	case proto.Marshaler:
		// this path performs extra allocations
		data, err := t.Marshal()
		if err != nil {
			return err
		}
		unk.Raw = data

		estimatedSize := prefixSize + uint64(unk.Size())
		data = memAlloc.Allocate(estimatedSize)

		i, err := unk.MarshalTo(data[prefixSize:])
		if err != nil {
			return err
		}

		copy(data, s.prefix)

		_, err = w.Write(data[:prefixSize+uint64(i)])
		return err

	default:
		// TODO: marshal with a different content type and serializer (JSON for third party objects)
		return errNotMarshalable{reflect.TypeOf(obj)}
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64

func (s *Serializer) Decode(originalData []byte, gvk *schema.GroupVersionKind, into runtime.Object) (runtime.Object, *schema.GroupVersionKind, error) {
	prefixLen := len(s.prefix)
	switch {
	case len(originalData) == 0:
		// TODO: treat like decoding {} from JSON with defaulting
		return nil, nil, fmt.Errorf("empty data")
	case len(originalData) < prefixLen || !bytes.Equal(s.prefix, originalData[:prefixLen]):
		return nil, nil, fmt.Errorf("provided data does not appear to be a protobuf message, expected prefix %v", s.prefix)
	case len(originalData) == prefixLen:
		// TODO: treat like decoding {} from JSON with defaulting
		return nil, nil, fmt.Errorf("empty body")
	}

	data := originalData[prefixLen:]
	unk := runtime.Unknown{}
	if err := unk.Unmarshal(data); err != nil {
		return nil, nil, err
	}

	actual := unk.GroupVersionKind()
	copyKindDefaults(&actual, gvk)

	if intoUnknown, ok := into.(*runtime.Unknown); ok && intoUnknown != nil {
		*intoUnknown = unk
		if ok, _, _ := s.RecognizesData(unk.Raw); ok {
			intoUnknown.ContentType = runtime.ContentTypeProtobuf
		}
		return intoUnknown, &actual, nil
	}

	if into != nil {
		types, _, err := s.typer.ObjectKinds(into)
		switch {
		case runtime.IsNotRegisteredError(err):
			pb, ok := into.(proto.Message)
			if !ok {
				return nil, &actual, errNotMarshalable{reflect.TypeOf(into)}
			}
			if err := proto.Unmarshal(unk.Raw, pb); err != nil {
				return nil, &actual, err
			}
			return into, &actual, nil
		case err != nil:
			return nil, &actual, err
		default:
			copyKindDefaults(&actual, &types[0])
			// if the result of defaulting did not set a version or group, ensure that at least group is set
			// (copyKindDefaults will not assign Group if version is already set). This guarantees that the group
			// of into is set if there is no better information from the caller or object.
			if len(actual.Version) == 0 && len(actual.Group) == 0 {
				actual.Group = types[0].Group
			}
		}
	}

	if len(actual.Kind) == 0 {
		return nil, &actual, runtime.NewMissingKindErr(fmt.Sprintf("%#v", unk.TypeMeta))
	}
	if len(actual.Version) == 0 {
		return nil, &actual, runtime.NewMissingVersionErr(fmt.Sprintf("%#v", unk.TypeMeta))
	}

	return unmarshalToObject(s.typer, s.creater, &actual, into, unk.Raw)
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

apiVersion: apps/v1beta1
kind: Deployment
metadata:
	name:nginx-deployment
spec:
	replicas: 1
    template:
      metadata:
        labels:
          app: nginx
      spec:
      containers:
      - name: nginx
      	image: nginx:1.7.9
        ports:
      	- containerPort:80

1

kubectl convert -f vlbeta1Deployment.yami --output-version=apps/v1

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

// Converter knows how to convert one type to another.
type Converter struct {
	// Map from the conversion pair to a function which can
	// do the conversion.
	conversionFuncs          ConversionFuncs
	generatedConversionFuncs ConversionFuncs

	// Set of conversions that should be treated as a no-op
	ignoredUntypedConversions map[typePair]struct{}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

type ConversionFuncs struct {
	untyped map[typePair]ConversionFunc
}


type typePair struct {
	source reflect.Type
	dest   reflect.Type
}

type ConversionFunc func(a, b interface{}, scope Scope) error

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

// v1版本好像已经弃用了

func addConversionFuncs(scheme *runtime.Scheme) error {
	// Add field label conversions for kinds having selectable nothing but ObjectMeta fields.
	if err := scheme.AddFieldLabelConversionFunc(SchemeGroupVersion.WithKind("StatefulSet"),
		func(label, value string) (string, string, error) {
			switch label {
			case "metadata.name", "metadata.namespace", "status.successful":
				return label, value, nil
			default:
				return "", "", fmt.Errorf("field label not supported for appsv1beta2.StatefulSet: %s", label)
			}
		}); err != nil {
		return err
	}

	return nil
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

// ! 版本转换在1.7中废弃，此代码在最新版本中转换失败

package main

import (
	"fmt"
	appsv1 "k8s.io/api/apps/v1"
	appsv1beta1 "k8s.io/api/apps/v1beta1"
	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
	"k8s.io/apimachinery/pkg/runtime"
	"k8s.io/kubernetes/pkg/apis/apps"
)

func main() {
	// KnownType external
	scheme := runtime.NewScheme()

	scheme.AddKnownTypes(appsv1beta1.SchemeGroupVersion, &appsv1beta1.Deployment{})
	scheme.AddKnownTypes(appsv1.SchemeGroupVersion, &appsv1.Deployment{})
	scheme.AddKnownTypes(apps.SchemeGroupVersion, &appsv1.Deployment{})
	metav1.AddToGroupVersion(scheme, appsv1beta1.SchemeGroupVersion)
	metav1.AddToGroupVersion(scheme, appsv1.SchemeGroupVersion)

	v1betalDeployment := &appsv1beta1.Deployment{TypeMeta: metav1.TypeMeta{Kind: "Deployment", APIVersion: "apps/v1beta1"}}

	// v1beta1 - internal
	objInternal, err := scheme.ConvertToVersion(v1betalDeployment, apps.SchemeGroupVersion)
	if err != nil {
		panic(err)
	}

	fmt.Println("GVK:", objInternal.GetObjectKind().GroupVersionKind().String())

	// internal - v1
	objV1, err := scheme.ConvertToVersion(objInternal, appsv1.SchemeGroupVersion)
	if err != nil {
		panic(err)
	}
	v1Deployment, ok := objV1.(*appsv1.Deployment)
	if !ok {
		panic("not a Deployment")
	}
	fmt.Println("GVK:", v1Deployment.GetObjectKind().GroupVersionKind().String())

}
